How Is The Replacement Of Cooling Coil In The Air-Con System Being Done

The owner of Subaru Impreza was complaining that her air-con was not cold. After a full air-con diagnostic from our team, we found out that the problem lies with the cooling coil.

 The cooling coil is not accessible from the bonnet itself. It is located under the storage box, in the dashboard.

The cooling coil is not accessible from the bonnet itself. It is located under the storage box, in the dashboard.

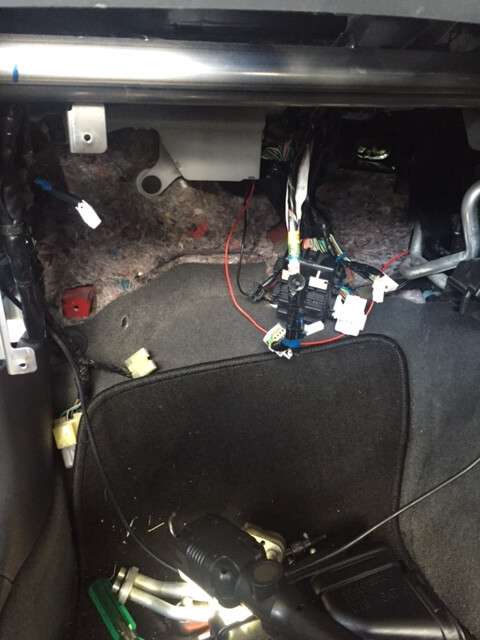

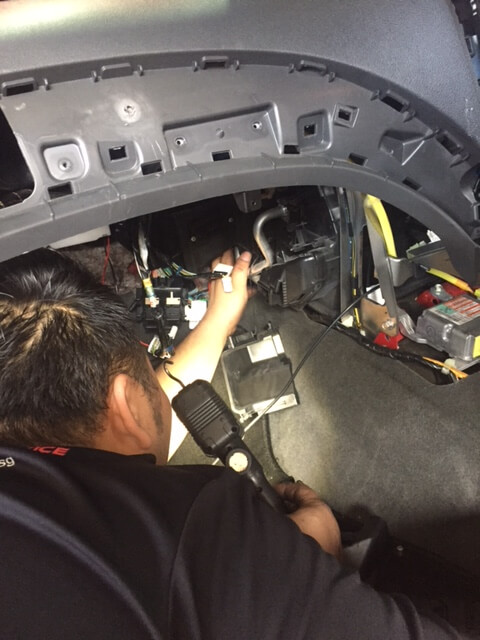

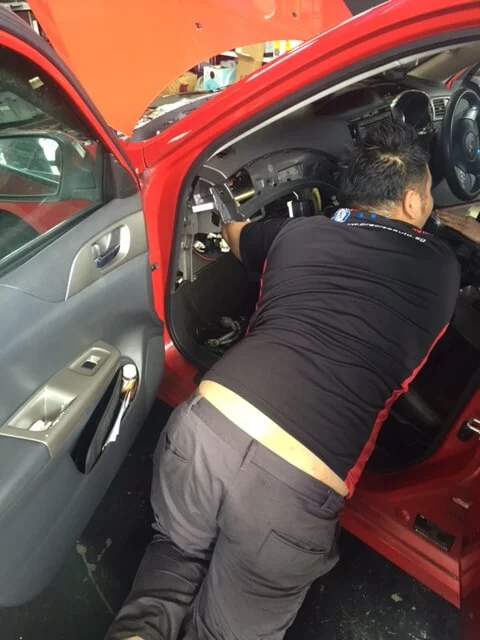

 We have to remove the dashboard to get access to the cooling coil.

We have to remove the dashboard to get access to the cooling coil.

 The work required to remove the cooling coil is more than a usual servicing job hence labour charges for this job tend to be on the higher side.

The work required to remove the cooling coil is more than a usual servicing job hence labour charges for this job tend to be on the higher side.

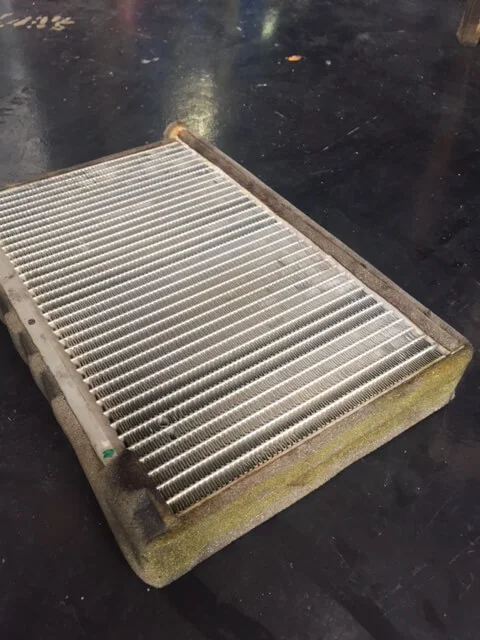

 Cooling coil is removed

Cooling coil is removed

 The leakage from the two passageway in the cooling coil is the reason why the air-con gas to able to escape from the air-con system.

The leakage from the two passageway in the cooling coil is the reason why the air-con gas to able to escape from the air-con system.

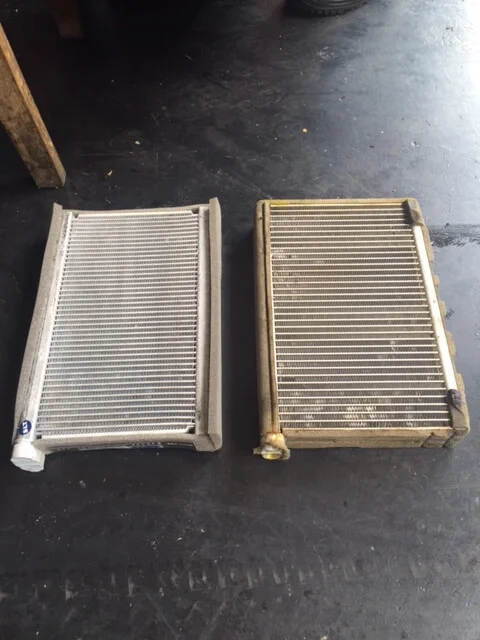

 The new cooling coil is on the left and the faulty one on the right

The new cooling coil is on the left and the faulty one on the right

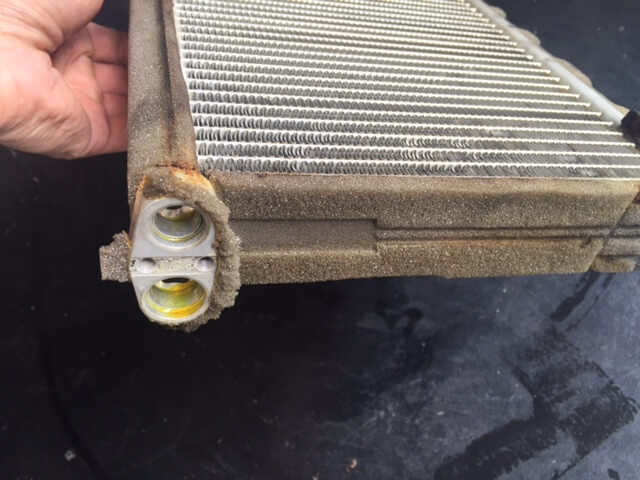

 Leakage of the compressor oil from the cooling coil (yellow in color)

Leakage of the compressor oil from the cooling coil (yellow in color)
